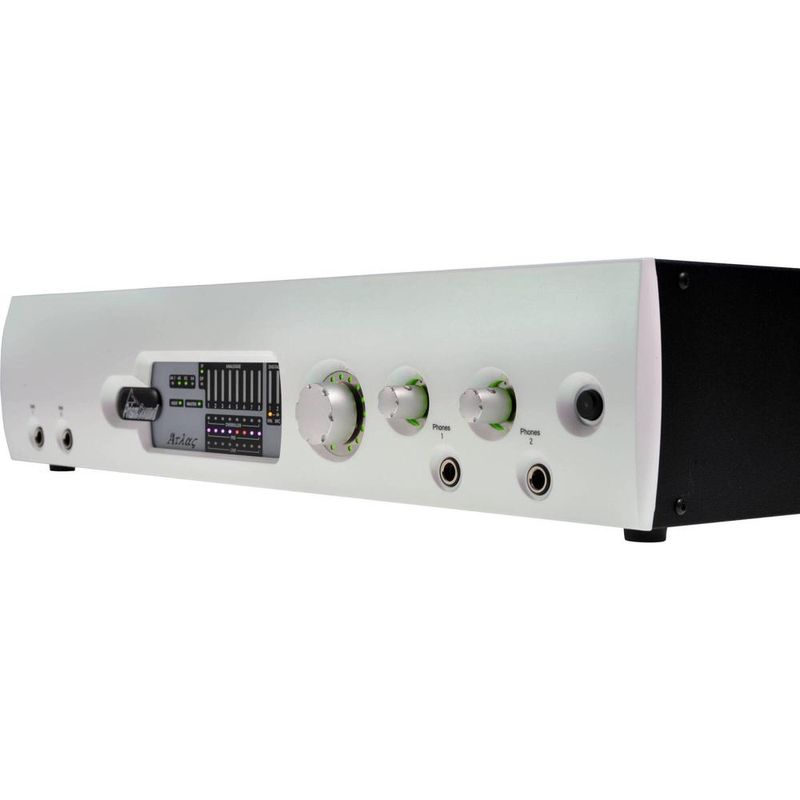

Prism Sound Atlas Rackmountable USB Audio Interface with Dante

The Prism Sound Atlas with Dante is a 2 RU rackmountable USB audio interface designed to deliver reliable precision, high-resolution, and multichannel audio I/O for musicians, vocalists, songwriters, and audio engineers in home, project, commercial, and mobile studios. It is equipped with an MDIO Dante Module that enables one or multiple Atlas interfaces to be connected to a Dante audio network. The interface's stable clock allows operation at up to 24-bit / 192 kHz resolution with high jitter rejection. With latency as low as 0.08 ms, it is well suited for recording, overdubbing, and even send-and-return routing.

Line or microphone sources can be connected via the eight XLR-1/4" combo inputs, while two front-panel 1/4" jacks accommodate instruments such as guitars or synthesizers. Phantom power is selectable as are the input pads and built-in limiters. The eight 1/4" line outputs are ideal for connection to speakers and power amps, while the front-panel 1/4" jacks offer dedicated level and mix controls for independent headphone monitoring. Additionally, digital connectivity includes RCA coaxial for S/PDIF or AES3, TOSLINK optical for S/PDIF or ADAT, and BNC for word clock. An RJ45 port is present for future AVB integration.

The Atlas is compatible with Mac OS X and Windows systems via its class-compliant USB 2.0 connectivity. An IEC power cable, USB cable, rackmount ears, and XLR to RCA adapters are included.
