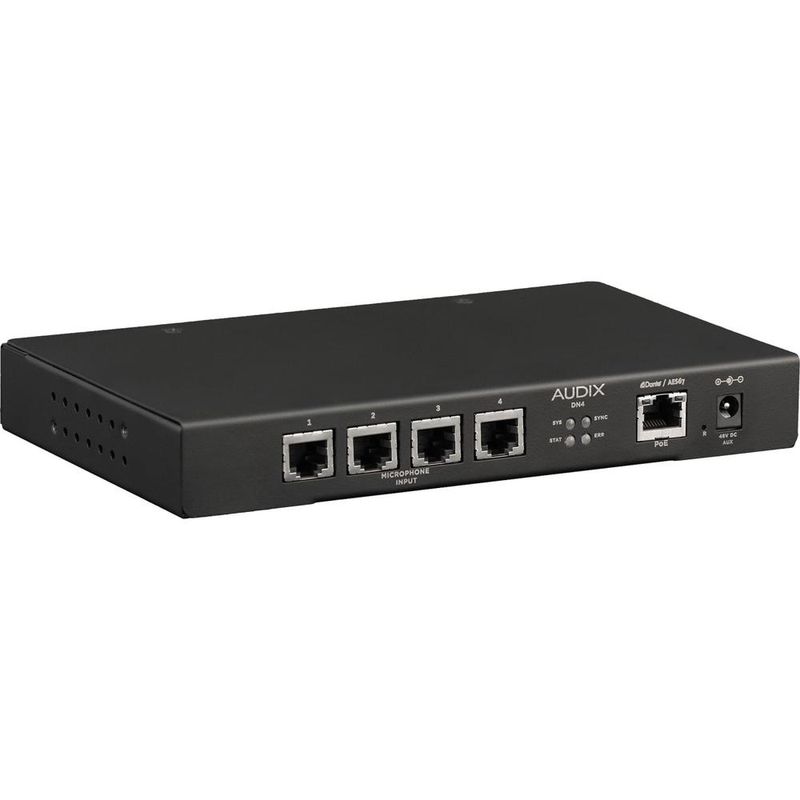

Audix DN4 Dante AES67 Integrated Microphone System Interface

The DN4 Dante AES67 Integrated Microphone System Interface from Audix is the heart of a microphone system that offers audio performance through Ethernet networks. It can be used to provide microphone functions including on-off contact closure and LED status indicators for meeting rooms, convention centers, educational facilities, and houses of worship through a single Cat 5 - Cat 7 cable with RJ45 connections.

The DN4 interface features four ports for Audix RJ45-equipped single-element microphones. The configuration eliminates wiring errors and accelerates installation. In addition, all Audix RJ45-equipped microphone gain structures are optimized for their intended placement, which provides quality audio at the DSP. The result is true plug-and-play installation.

Furthermore, the interface is equipped with two 5V logic outputs per port and source/sink capability for LEDs that are controlled by network-connected DSPs. Low-pass and high-pass filter settings are available for each audio channel as well as eight selectable gain levels with all settings configurable via software.
